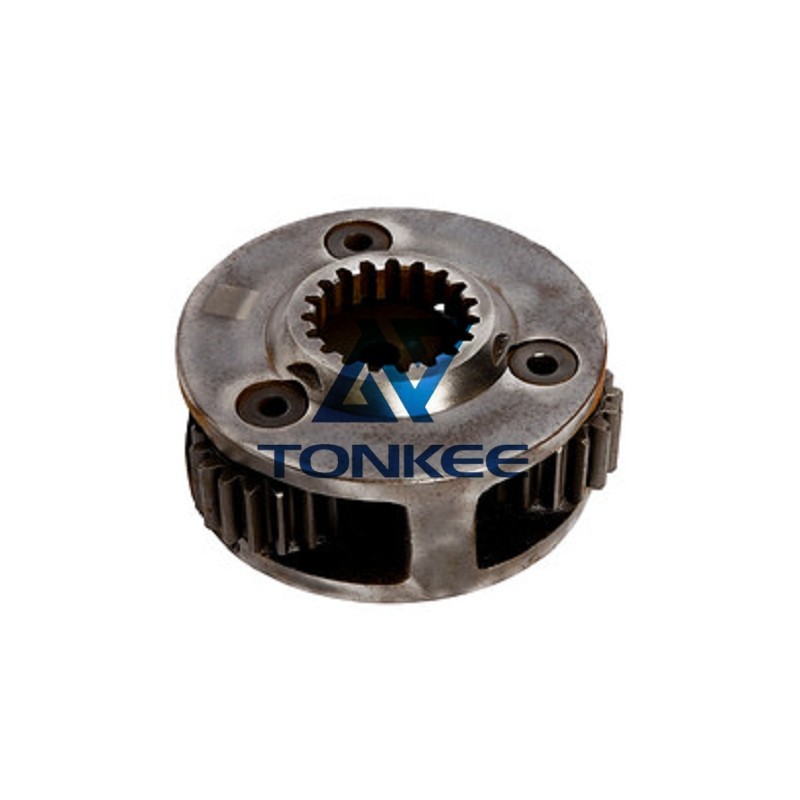

China HITACHI ZX120 SWING DEVICE SLEW BOX TOP PLANETARY1 CARRIER | Tonkee®

Purpose and Functionality: The top planetary carrier is a fundamental part of the swing device in the Hitachi ZX120 excavator.

Its primary function is to support and facilitate the rotation of the upper structure of the excavator, including the cab and the boom, by transmitting power from the hydraulic motor to the swing gear.

Material and Durability: Typically, the top planetary carrier is constructed from high-strength materials like hardened steel or alloy steel. These materials are chosen for their durability and ability to withstand the heavy loads and stresses associated with excavator operations.

Design and Configuration: The top planetary carrier is designed as a compact and robust assembly, consisting of several key components:

Planetary Gears: The carrier houses a set of planetary gears. These gears are responsible for distributing power evenly, ensuring smooth and balanced rotation of the upper structure.

Bearings: High-quality bearings are incorporated into the carrier to reduce friction and facilitate the smooth movement of the gears. These bearings are often sealed to prevent contamination by dust and debris.

Mounting Points: The carrier is equipped with mounting points that allow it to be securely attached to the swing gearbox and other parts of the swing device.

Dimensions and Specifications: The specific dimensions and specifications of the top planetary carrier in the Hitachi ZX120 swing device can vary depending on the manufacturer and model year. However, some general specifications might include:

Diameter: The diameter of the carrier is typically designed to match the swing gearbox and other components for proper alignment and engagement of the gears.

Weight: The weight of the top planetary carrier can vary, but it is generally designed to be heavy enough to provide stability and support for the upper structure of the excavator.

Load Capacity: The carrier is engineered to handle substantial loads, as it plays a critical role in supporting the upper structure and allowing it to rotate smoothly.

Maintenance and Lubrication: Proper maintenance is essential to ensure the longevity and performance of the top planetary carrier. This includes regular inspection for wear and tear, lubrication of bearings and gears, and prompt replacement if any components show signs of damage.
